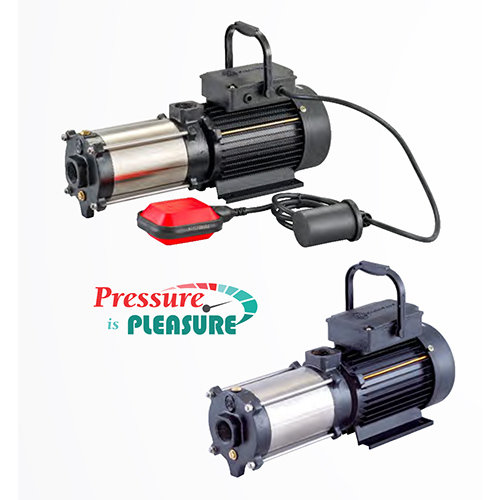

Claro - Self Priming Pumps

Product Description

Specification

• Power Range : 0.37 kW & 0.75 kW (0.5 HP & 1 HP)
• Head Range : 10 Mtrs to 90 Mtrs
• Flow Range : 5 LPM to 37 LPM
• Version : Single Phase, 220V, 50Hz, A.C. Supply
• Max. Working Pressure : 9 bar
• Insulation Class : B
• Degree of Protection : IP 44
• Pipe Size : 15mm x 15 mm

Material Of Construction

• Motor Frame : Aluminum
• Front & Back Cover : CI
• Mechanical Seal : Carbon vs Ceramic
• Impeller : Brass
• Shaft : SS410

Salient Features

• Upto 9 Bar working pressure
• Specially designed for RO application
• Heavy type seal is used for high withstanding capacity
• Low noise level and low vibration level
• Inbuilt thermal overload protector

Application

• Water Treatment Plant
• Pressure Boosting Systems
• Residential & Gardening
• Hot & Cold Water Circulation
