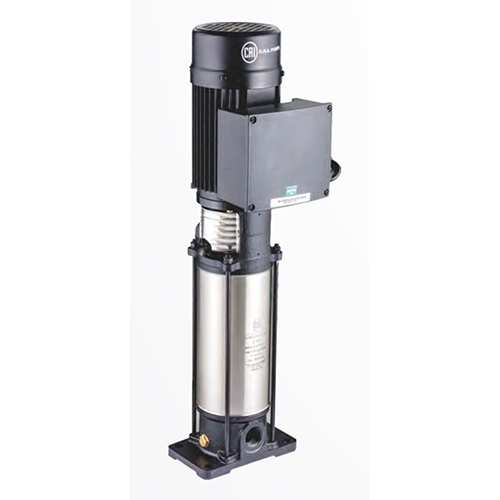

MSP Series Centrifugal Pump

Get a Price/Quote

Product Details:

Usage Industrial
Theory Centrifugal Pump
Flow Rate 1 m /hr to 4 m /hr
Color Black
Material Stainless Steel
Power Electric
Fuel Type Diesel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

MSP Series Centrifugal Pump Price And Quantity

Minimum Order Quantity 1 Piece

MSP Series Centrifugal Pump Product Specifications

Usage Industrial
Power Electric
Material Stainless Steel
Fuel Type Diesel
Pressure High Pressure
Color Black
Flow Rate 1 m /hr to 4 m /hr
Theory Centrifugal Pump

Product Description

Specification

Power Range : 0.55 kW - 2.2 kW (0.75 HP - 3 HP)
Head Range in Meters : 50 Mtrs to 193 Mtrs
Flow Range in Meters : 1 m /hr to 4 m /hr
Version : Single Phase, 230V, 50Hz, A.C. Supply
Liquid Temperature : 0 Degree C to 90 degree C
Ambient Temperature : 45 degree C
Max. Working Pressure : 19 bar
Insulation Class F : F
Degree of Protection : IP 55

Material of Construction

Pump Shell : SS 304
Impeller : SS 304
Diffuser: Noryl
Mech. Seal : SiC vs Carbon vs Viton
Motor Frame : Aluminium
Front & Back Cover : Aluminium
Cooling Fan Cover : Mild Steel
Cooling Fan : Nylon

Dimension

Model	Power		Dimension						Weight in kg
	Kw	HP	L		X		Y		3 Ph	1 Ph
	Kw	HP	3 Ph	1 Ph	3 Ph	1 Ph	3 Ph	1 Ph	3 Ph	1 Ph
MSP-2E/06	0.55	0.75	533	533	112	148	139	139	14.5	15
MSP-2E/08	0.75	1.0	573	573	112	148	139	139	16.5	17
MSP-2E/10	1.1	1.5	634	634	112	148	139	139	18	18.5
MSP-2E/12	1.1	1.5	674	674	112	148	139	139	19.5	20
MSP-2E/14	1.5	2	747	777	121	157	163	163	22.5	23
MSP-2E/16	1.5	2	788	818	121	157	163	163	25	25.5
MSP-2E/19	2.2	3	880	880	121	151	163	163	25.5	26
MSP-2E/22	2.2	3	940	940	121	157	163	163	28	28.5

Performance Chart

MODEL	kW	HP	STAGE	m3/hr	0	1	1.5	2	2.5	3	3.5	4
MODEL	kW		STAGE	lps	0	0.27	0.41	0.55	0.69	0.83	0.97	1.11
MSP-2E/06	0.55	0.75	6	Head in Meters	50	46	42	38	33	26	20	11
MSP-2E/08	0.75	1.0	8		69	64	60	54	47	39	29	18
MSP-2E/10	1.1	1.5	10		83	76	71	65	56	45	35	20
MSP-2E/12	1.1	1.5	12		100	92	86	78	68	55	42	24
MSP-2E/14	1.5	2	14		122	114	110	101	89	75	61	41
MSP-2E/16	1.5	2	16		135	127	121	111	97	82	65	45
MSP-2E/19	2.2	3	19		162	151	143	132	117	103	76	50
MSP-2E/22	2.2	3	22		193	181	171	164	147	117	100	60

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'C.R.I Vertical Multistage Centrifugal Pump' category

MSP Series Minimum Order Quantity : 1 Material : Cast Iron Power : Electric Fuel Type : Diesel Usage : Industrial Pressure : High Pressure Color : Black Theory : Centrifugal Pump Structure : Single Stage Pump

Send Inquiry

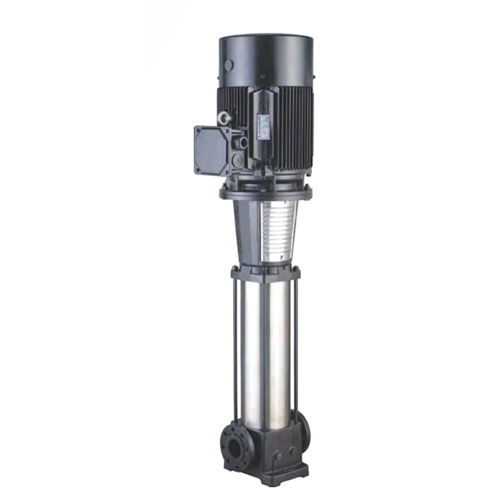

MVC Series Centrifugal Pump Minimum Order Quantity : 1 Material : Stainless Steel Power : Electric Fuel Type : Diesel Usage : Industrial Pressure : Medium Pressure Color : Black Theory : Centrifugal Pump Structure : Multistage Pump

Send Inquiry

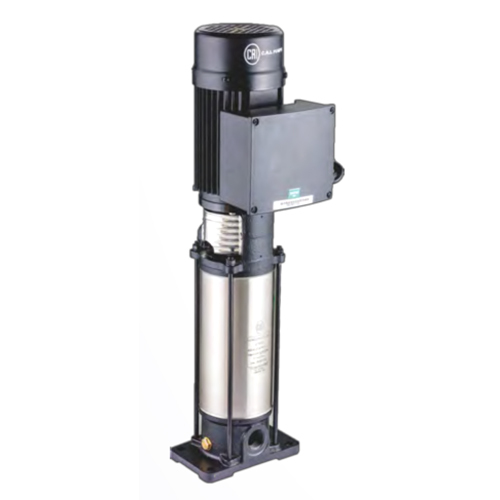

MTP Series Centrifugal Pump Minimum Order Quantity : 1 Material : Cast Iron Power : Electric Fuel Type : Diesel Usage : Industrial Pressure : Medium Pressure Color : Black Theory : Centrifugal Pump

Send Inquiry

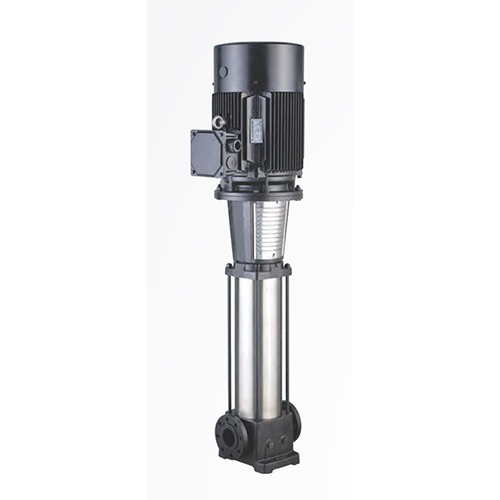

MVC Series Minimum Order Quantity : 1 Material : Cast Iron Power : Electric Fuel Type : Diesel Usage : Industrial Pressure : High Pressure Color : Black, Sliver Flow Rate : 1 m /hr to 7 m /hr
