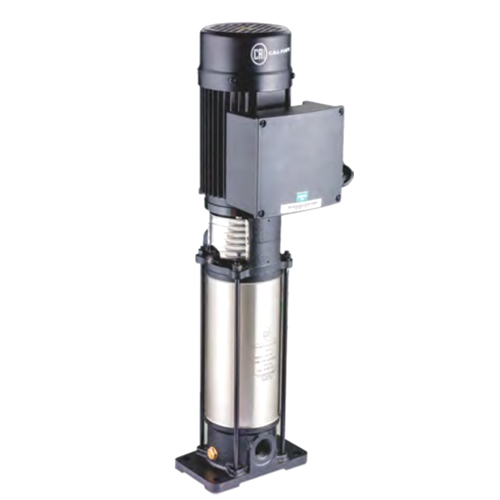

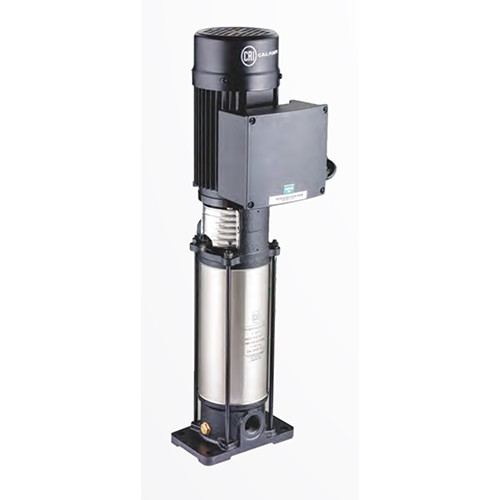

MVC Series Centrifugal Pump

Name: MVC Series Centrifugal Pump
Brand: N M AQUATECH
Price: 24500 INR
Availability: InStock

Price 24500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MVC Series Centrifugal Pump Specification

Features
Heavy Duty

Theory
Centrifugal Pump

Material
Mild Steel

Structure
Multistage Pump

Power
Electric

Fuel Type
Diesel

Pressure
High

Color
Black

Usage
Industrial

Pump Type
centrifugal pumps

About MVC Series Centrifugal Pump

Specification

Power Range : 1.1 kW to 4 kW (1.5 HP to 5.5 HP)
Head Range in Meters : 37 Mtrs to 211 Mtrs
Flow Range in Meters : 1 m /hr to 7 m /hr
Version : Single Phase, 230V & Three Phase 380-415V, 50Hz, A.C. Supply
*Liquid Temperature : 0 C to 90 degree C and -15 degree C to 120 degree C
Ambient Temperature : 45 degree C
Max. Working Pressure : 21 bar
Insulation Class F : F
Degree of Protection : IP 55

Material Of Construction

Outer Shell : SS 304
Pump Head & Base : CI
Impeller & Diffuser :SS 304
Pump Shaft : SS 304 / SS 431
Bearing Ring : SiC & T.C
Mechanical Seal : SiC Vs SiC Vs Viton /T.C Vs Car Vs Viton
Motor Frame : Aluminium
Front & Back Cover : Aluminium
Cooling Fan Cover :Mild Steel
Cooling Fan : Nylon

Dimension

Model	Power		Dimension in mm							Weight in kg
	KW	HP	L1	L2		X		Y	Z	Pump	Motor
				1 Ph	3 Ph	1 Ph	3 Ph	1 Ph		MVC	1 Ph	3 Ph
MVC-02/09	1.1	1.5	395	260	-	148	-	139	146	23.6	10.7	-
MVC-02/11	1.1	1.5	431	260	-	148	-	139	146	25.0	10.7	-
MVC-02/13	1.5	2	485	320	-	157	-	160	163	26.6	15.3	-
MVC-02/15	1.5	2	521	320	-	157	-	160	163	28.0	15.3	-
MVC-02/18	2.2	3	575	303	-	161	-	176	163	30.1	18.0	-
MVC-02/22	2.2	3	647	303	-	161	-	176	163	33.0	18.0	-
MVC-04/12	2.2	3	575	303	-	161	-	176	163	29.4	18.0	-
MVC-4E/12	2.2	3	466	303	-	161	-	176	163	25.9	18.0	-
MVC-4E/16	3	4	538	361	-	161	-	176	163	28.7	22.2	-
MVC-4E/19	4	5.5	592	-	315	-	132	197	163	27.2	-	22.3
MVC-4E/22	4	5.5	646	-	315	-	132	197	163	29.3	-	22.3

Performance Chart

MODEL	kW	HP	STAGE	m3/hr	0	1.5	2	2.5	3	3.5	4
MODEL	kW		STAGE	lps	0	0.41	0.55	0.69	0.83	0.97	1.11
MVC-02/09	1.1	1.5	9	Head in Meters	86	76.5	70	62	52.5	45	37
MVC-02/11	1.1	1.5	11		104	90	83	73.5	62.5	50	37.5
MVC-02/13	1.5	2.0	13		128	109	100	87.5	72.5	57.5	42
MVC-02/15	1.5	2.0	15		145	122.5	112.5	100	85	67.5	47.5
MVC-02/18	2.2	3.0	18		179	153.5	141	126	108	88	63
MVC-02/22	2.2	3.0	22		211	180	165	150	127.5	100	70

Superior Multistage Construction

The MVC Series Centrifugal Pump features a multistage structure, enhancing its capacity to generate higher pressures compared to single-stage pumps. This design is especially suited for industrial environments requiring extended continuous operation and robust fluid management. The usage of mild steel augments its longevity.

Heavy Duty Performance for Indian Industries

Engineered to meet the challenging demands of industrial usage, this centrifugal pump delivers high-pressure output with minimal maintenance. Its adaptability to diesel fuel makes it an efficient solution for facilities across India, from manufacturing plants to large-scale distribution operations.

FAQ's of MVC Series Centrifugal Pump:

Q: How does the MVC Series Centrifugal Pump operate in industrial environments?

A: The MVC Series Centrifugal Pump uses electric power to drive its multistage centrifugal mechanism, efficiently moving large volumes of fluids at high pressures, making it ideal for heavy-duty industrial applications.

Q: What are the main benefits of using a multistage centrifugal pump over a single-stage pump?

A: Multistage pumps like the MVC Series deliver higher pressure capabilities, increased energy efficiency, and greater reliability, making them better suited for complex industrial processes requiring consistent and powerful fluid transfer.

Q: When is it recommended to use the MVC Series Centrifugal Pump?

A: This pump should be used when high-pressure, continuous fluid movement is necessary, particularly in industrial settings such as manufacturing plants, processing facilities, and distribution centers.

Q: Where can the MVC Series Centrifugal Pump be sourced in India?

A: You can obtain the pump through authorized distributors, suppliers, and traders across India, ensuring access to reliable products and necessary support for your operational needs.

Q: What is the process for installing and maintaining the MVC Series Centrifugal Pump?

A: The pump installation involves securing it to a stable base, connecting the power supply, and integrating it into the designated fluid system. Regular maintenance includes checking for wear, inspecting seals, and ensuring prompt lubrication of moving parts.

Q: How is diesel fuel utilized with this centrifugal pump?

A: While the pump is primarily electric-powered, it is engineered to handle fluids that may include diesel fuel, making it versatile for industrial pumping operations that require such compatibility.

Q: What features make the MVC Series Centrifugal Pump a heavy-duty solution for industries?

A: Its robust mild steel construction, multistage design, high-pressure performance, and compatibility with both electric and diesel-powered operations distinguish it as a heavy-duty option tailored for industrial strength and durability.
